compboost

About Compboost

About compboost

• Component-wise/model-based boosting algorithm written in C++.
• Accessible through R by exposing the important classes.
• C++ documentation generated by doxygen.
• Unit tested and code coverage .

Infrastructure of compboost

C++ and Rcpp

• Expensive algorithms are written in C++.
• Exporting C++ to R using Rcpp.
• Using Rcpp Armadillo for linear algebra operations.
• But why using C++:
  • In model-based boosting with, for example, 1 000 base-learner and 1 500 iterations 1 500 000 models must be trained.
    \(\Rightarrow\) Very expensive.
  • For loops in R are also expensive, in C++ they aren't.

But Why C++

train.test = "
arma::mat trainTest (arma::mat X, arma::mat y)
{
  return arma::inv(X.t() * X) * X.t() * y;
}
"

trainTestR = function (X, y) { return (solve(t(X) %*% X) %*% t(X) %*% y) }

Rcpp::cppFunction(code = train.test, depends = "RcppArmadillo", rebuild = TRUE)

n = 50000
p = 40

X = matrix(rnorm(n * p), nrow = n, ncol = p)
y = matrix(runif(n), nrow = n, ncol = 1)

# Equivalent to spline train:
microbenchmark::microbenchmark(
  "C++"  = trainTest(X, y),
  "R" = trainTestR(X, y)
)
## Unit: milliseconds
##  expr      min       lq      mean    median        uq       max neval cld
##   C++ 40.19887 41.17449  42.16829  41.70505  42.99132  46.74248   100  a
##     R 95.91568 98.72515 111.33488 102.18383 105.70319 211.14321   100   b


But Why C++

HTML, CSS and JavaScript

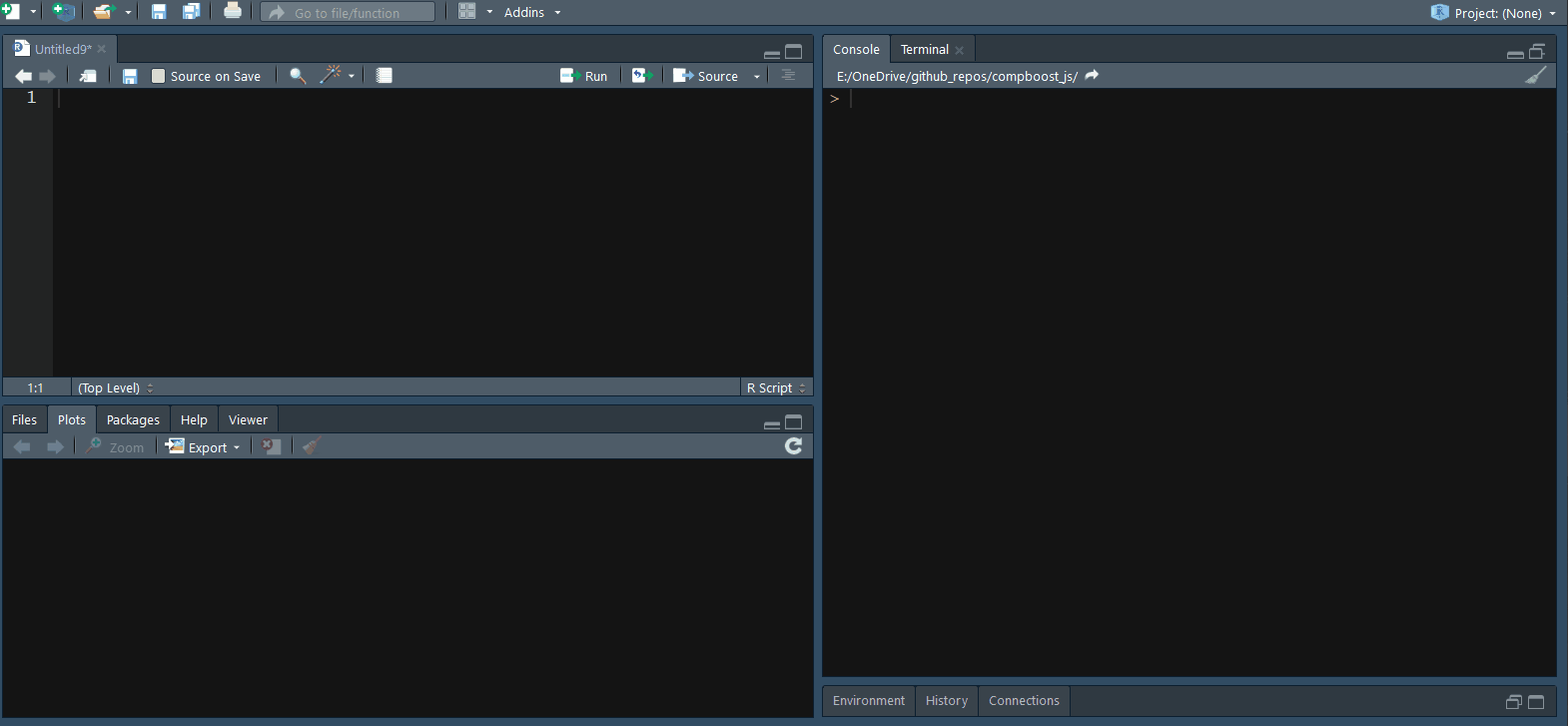

• Providing an web app written in HTML to explore the model.
• To get interactive graphics use JavaScript and D3.
• Generating necessary data and parsing web app from R.

Collecting Everything With R

• API to train and modify the model as well as static plots.
• Simple way to continue training or set the algorithm to another iteration.
• Provide generic functions (predict, print, summary, plot) for a compboost class.
• Export csv files containing parameters and the risk to parse the web app.

Class System of Compboost

Class System of compboost

• Example by taking a look at the QuadraticLoss class for:
  • C++ class
  • C++ wrapper class
  • R S4 class
• This illustrates the process from C++ to R.

C++ Classes: Abstract Loss

class Loss
{
public:

  /// Specific loss function
  virtual arma::vec definedLoss (const arma::vec&, const arma::vec&) const = 0;

  /// Gradient of loss functions for pseudo residuals
  virtual arma::vec definedGradient (const arma::vec&, const arma::vec&) const = 0;

  /// Constant initialization of the empirical risk
  virtual double constantInitializer (const arma::vec&) const = 0;

  virtual ~Loss ();

protected:

  /// Custom offset:
  double custom_offset;

  /// Tag if a custom offset is used
  bool use_custom_offset = false;

  /// Weights:
  arma::vec weights;
};


C++ Classes: Child QuadraticLoss

class QuadraticLoss : public Loss
{
public:

  /// Default Constructor
  QuadraticLoss ();

  /// Constructor to initialize custom offset
  QuadraticLoss (const double&);

  /// Specific loss function
  arma::vec definedLoss (const arma::vec&, const arma::vec&) const;

  /// Gradient of loss functions for pseudo residuals
  arma::vec definedGradient (const arma::vec&, const arma::vec&) const;

  /// Constant initialization of the empirical risk
  double constantInitializer (const arma::vec&) const;
};


C++ Classes: Child QuadraticLoss Implementation

QuadraticLoss::QuadraticLoss () { }
QuadraticLoss::QuadraticLoss (const double& custom_offset0)
{
  custom_offset = custom_offset0;
  use_custom_offset = true;
}

arma::vec QuadraticLoss::definedLoss (const arma::vec& true_value,
  const arma::vec& prediction) const
{
  return arma::pow(true_value - prediction, 2) / 2;
}

arma::vec QuadraticLoss::definedGradient (const arma::vec& true_value,
  const arma::vec& prediction) const
{
  return prediction - true_value;
}

double QuadraticLoss::constantInitializer (const arma::vec& true_value) const
{
  if (use_custom_offset) { return custom_offset; }
  return arma::mean(true_value);
}


C++ Wrapper Classes

class QuadraticLossWrapper : public LossWrapper
{
public:
  QuadraticLossWrapper () { obj = new loss::QuadraticLoss(); }
  QuadraticLossWrapper (double custom_offset) { obj = new loss::QuadraticLoss(custom_offset); }

  arma::vec testLoss (arma::vec& true_value, arma::vec& prediction) {
    return obj->definedLoss(true_value, prediction);
  }
  arma::vec testGradient (arma::vec& true_value, arma::vec& prediction) {
    return obj->definedGradient(true_value, prediction);
  }
  double testConstantInitializer (arma::vec& true_value) {
    return obj->constantInitializer(true_value);
  }
};


Rcpp Module

RCPP_EXPOSED_CLASS(LossWrapper);
RCPP_MODULE (loss_module)
{
  using namespace Rcpp;

  class_< LossWrapper > ("Loss")
    .constructor ()
  ;

  class_< QuadraticLossWrapper > ("QuadraticLoss")
    .derives< LossWrapper > ("Loss")
    .constructor ()
    .constructor < double > ()
    .method("testLoss", &QuadraticLossWrapper::testLoss,
	  "Test the defined loss function of the loss")
    .method("testGradient", &QuadraticLossWrapper::testGradient,
	  "Test the defined gradient of the loss")
    .method("testConstantInitializer", &QuadraticLossWrapper::testConstantInitializer,
	  "Test the constant initializer function of the loss")
  ;
}


R S4 Classes

QuadraticLoss
## C++ class 'QuadraticLoss' <0000000010de5960>
## Constructors:
##     QuadraticLoss()
##     QuadraticLoss(double)
##
## Fields: No public fields exposed by this class
##
## Methods:
##      double testConstantInitializer(arma::Col< double >)
##            docstring : Test the constant initializer function of the loss
##      arma::Col< double > testGradient(arma::Col< double >, arma::Col< double >)
##            docstring : Test the defined gradient of the loss
##      arma::Col< double > testLoss(arma::Col< double >, arma::Col< double >)
##            docstring : Test the defined loss function of the loss
##

q.loss = QuadraticLoss$new()
q.loss$testConstantInitializer(1:10)
## 5.5


URL Diagram With all Classes

Small Benchmark:
Compboost vs Mboost

Setup

• For each benchmark, runtime and memory was measured for varying numbers of observations, iterations and base-learners using splines and linear base-learners.
• Benchmark with simulated data:
  1. Correlation of features are Beta(1,8) distributed.
  2. Dataset is is simulated by a multivariate gaussian with the correlations from 1.
  3. Coefficients are simulated from a U[-2,2] distribution.
  4. Target variable y is calculated as linear combination of the data and parameter.

Runtime Benchmark

• Each experiment is repeated five times using the package batchtools.
• While varying a parameter the other default values are:
  1. Number of observations: 2 000
  2. Number of iterations: 1 500
  3. Number of base-learners: 1 000

Storing Inverse to Increase Performance

• Compboost as well as mboost stores the inverse to boost performance of the algorithm.
• Most base-learners solves a system of linear equations: \[ \widehat{\beta} = \left(X^TX + \lambda K\right)^{-1} X^Ty \]
• The trick is to store \(\left(X^TX + \lambda K\right)^{-1}\) once and reuse this matrix for every new training.

Memory Benchmark

• Comparison between compboost and mboost with disabling and enabling sparse matrices for mboost.
• The common R packages to get memory usage have some issues in tracking memory allocations done on the heap by C++
  \(\Rightarrow\) Small helper C++ program to track the memory usage every second.

Memory Benchmark

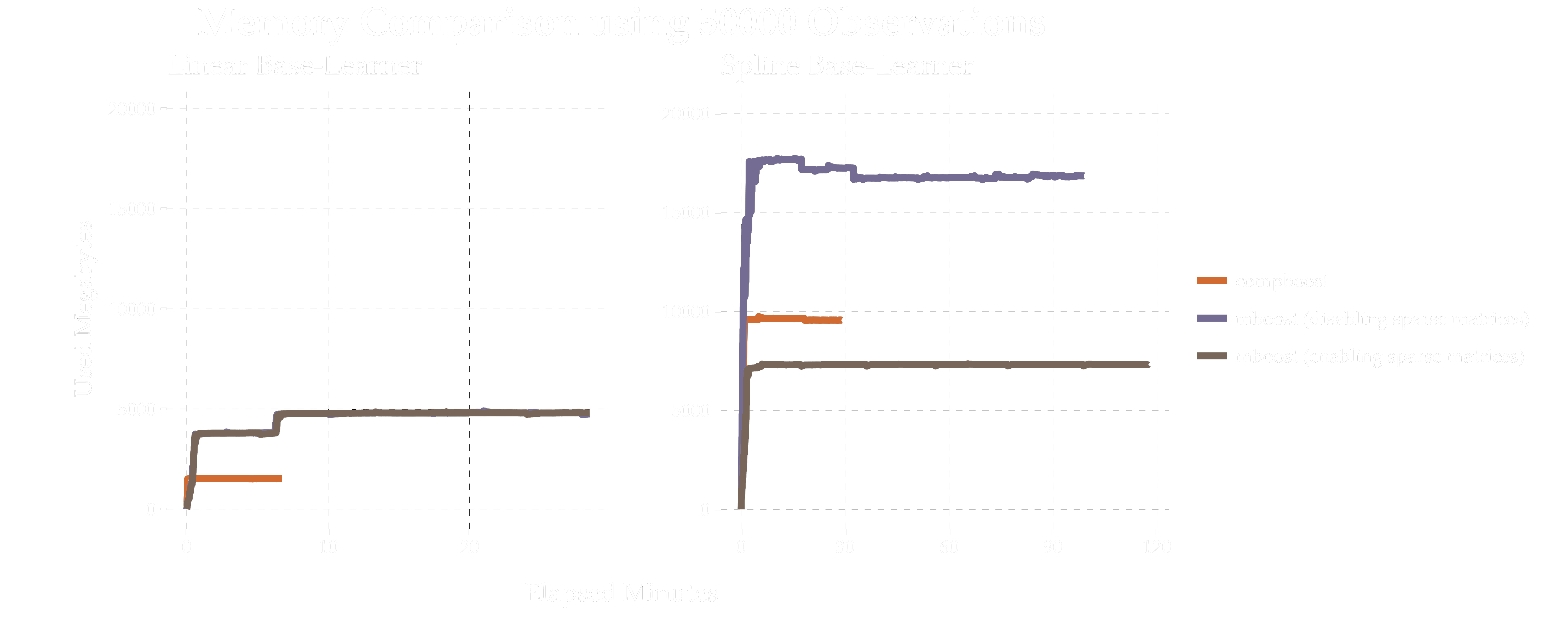

• The following image was made by using 1 000 base-leanrer,
  1 000 iterations and 50 000 observations.
• Storing the data as dense matrices uses about 9.2 GB RAM: \[ 50 000\ \cdot\ 23\ \cdot\ 1 000\ \cdot\ 8\ Bytes\ \approx\ 9.2\ GB \]
• Additionally, storing the inverse takes just 0.004 GB: \[ 23\ \cdot\ 23\ \cdot\ 1 000\ \cdot\ 8\ Bytes\ \approx\ 0.004\ GB \]

Next Steps

R API

R cannot just be used to run the main algorithm but also to:

• Provide a formula API which is common to most R users.
• Parallelize the data transformations.
• Memory handling by deleting unused data sources.

Optimizing Code

• Different ways of possible parallel computations:
  • Doing parallelizations within R to transform the data parallel instead of sequential.
  • Doing parallelizations within C++ to find the best base-learner in parallel.
• Using sparse matrices to use less memory and speed up the algorithm.

Sparse Matrices

Depending on the structure, it is possible to increase performance:

dense.spline.train = "
  arma::mat test1 (arma::mat Z, arma::mat X, arma::mat y) { return Z * X * y; }
"
sparse.spline.train = "
  arma::mat test2 (arma::mat Z, arma::sp_mat X, arma::mat y)
  {
    // Brackets are important due to CSC format:
    return Z * (X * y);
  }
"
Rcpp::cppFunction(code = dense.spline.train, depends = "RcppArmadillo", rebuild = TRUE)
Rcpp::cppFunction(code = sparse.spline.train, depends = "RcppArmadillo", rebuild = TRUE)

n = 100000; p = 40;
Z = matrix(runif(p^2), p, p)
X = matrix(0, nrow = n, ncol = p)
X[1:n, sample(1:p, 5)] = rnorm(10000 * 5)
y = matrix(runif(n), nrow = n, ncol = 1)
betas = matrix(runif(p), nrow = p, ncol = 1)
X.sparse = as(X, "sparseMatrix")

# Equivalent to spline train:
microbenchmark::microbenchmark(
  "dense spline train"  = test1(Z, t(X), y),
  "sparse spline train" = test2(Z, t(X.sparse), y)
)
## Unit: milliseconds
##                 expr      min       lq     mean   median       uq      max neval cld
##   dense spline train 26.72330 28.01085 44.14224 29.70544 32.75517 144.2635   100   b
##  sparse spline train 10.13785 10.55193 15.07657 10.93836 11.60216 130.8875   100  a


Visualizing compboost

• Static graphics with standard R plotting systems like base or ggplot2.
• Interactive Visualization with HTML and JavaScript.

Greater Functionality

• More supported base-learner.
• Greater number of supported loss functions.
• Additional optimizer.
• Possibility to combine base-learner to more complex ones.
